Product Details:
|
| Catagory: | Standard Series | Input Voltage: | 24V DC |
|---|---|---|---|
| Output Power: | 8w/m | Application: | Commercial, Residential |
| Warranty: | 3 Years | Efficacy: | 90lm/w |
| High Light: | Super Slim led cob tape light,5mm PCB led cob tape light,cob led pcb 24V |
||

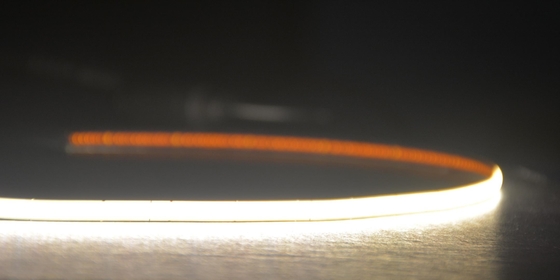

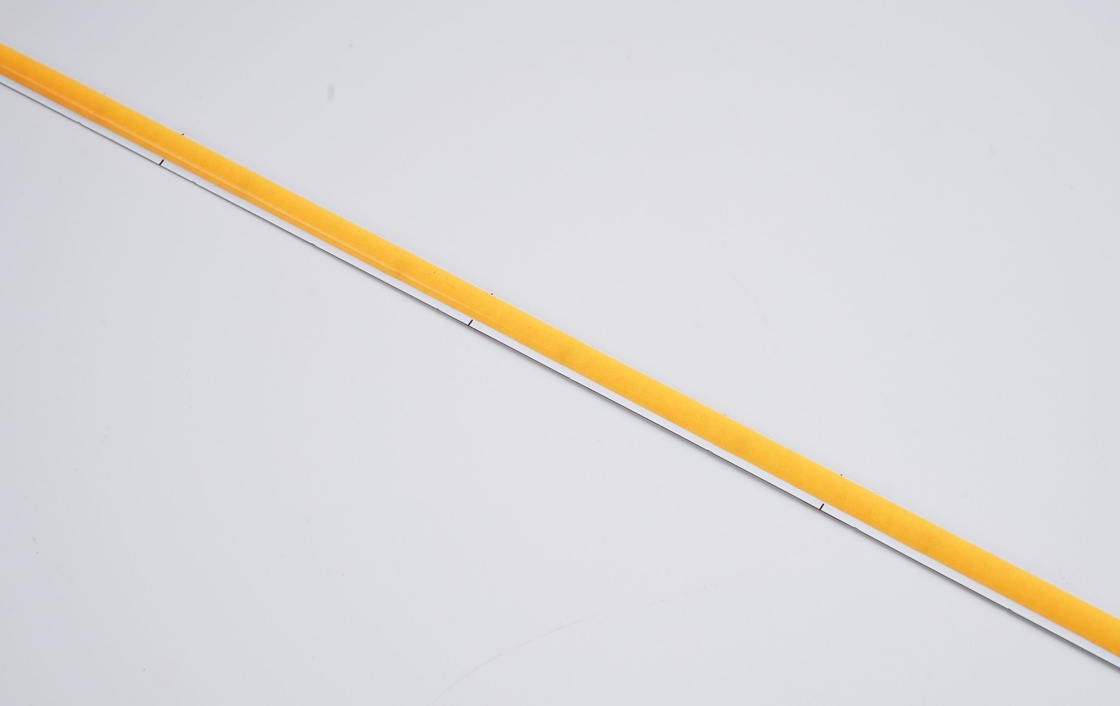

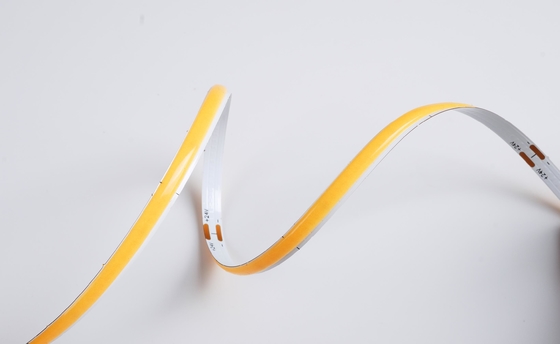

Flexible LED COB Strip 5mm Slim pcb 24V
Product features:
Super slim pcb 5mm design for tinny profile application
Dotless light output with 140° beam angle
3M self-adhesive tape backing, easy installation and low maintenance
High CRI value provides excellent color rendering
Technical details:
| Cut length | 50mm |
| Input voltage | 24V DC |
| Power | 8w/m |
| PCB width | 5mm |
| LED quantity | 480chips |
| Max run | 5meter/16.4ft |
| Beam angle | 140° |
| IP rating | IP20 |
| Storage temperature | -40℃~ 85℃ |
| Operating temperature | -20℃~ 40℃ |
| Certificate | UL, CE, UKCA, RoHS |
| Warranty | 3 years |
Operating Instruction:
Application and use:
Cabinet Lighing
Back lighting
Accent lighting
Landscape lighting
Curve lighting
FAQ
* What about the lead time?
Sample needs 3-5 days, mass production time needs 3-4 weeks.
* Do you have MOQ?
Yes, basically 500 meters for general order.
* How do you ship the goods?
We usually ship by DHL, UPS, Fedex or TNT for express delivery. Shipment by air or by sea according to customer’s requirement.
* How to proceed an order?
We receive your PO. 2. We send you the PI. 3. You make the payment. 4. We start the production. 5. We ship out the order.
* Can you print my logo for my order?
Yes. The request has to be made at the beginning.
* Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty for our products.
* How to handle customer complaints?
During the warranty period, all the defective products have replacement guarantee. We’ll need some faulty products to ship back for evaluation. This will help us improve our quality.
